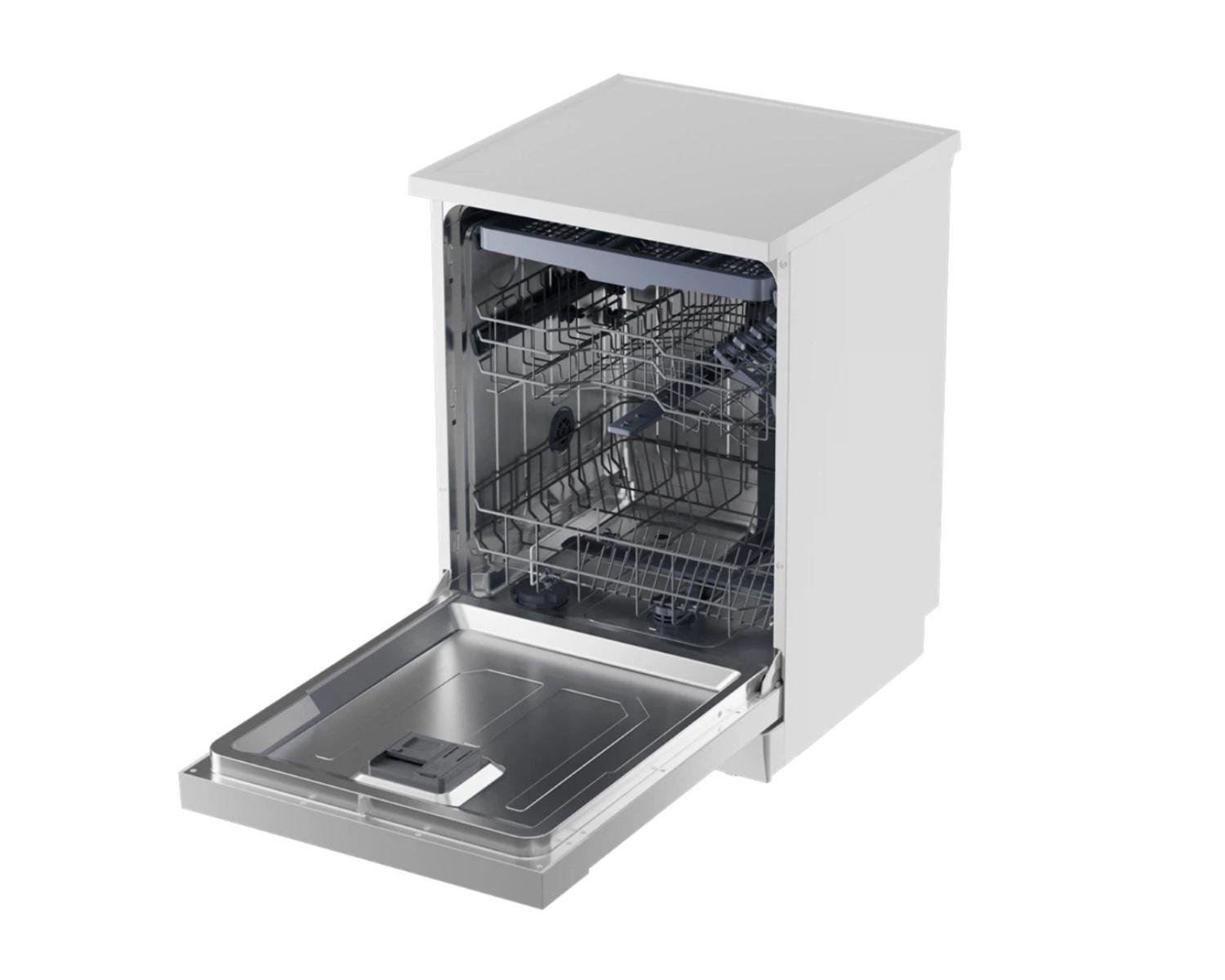

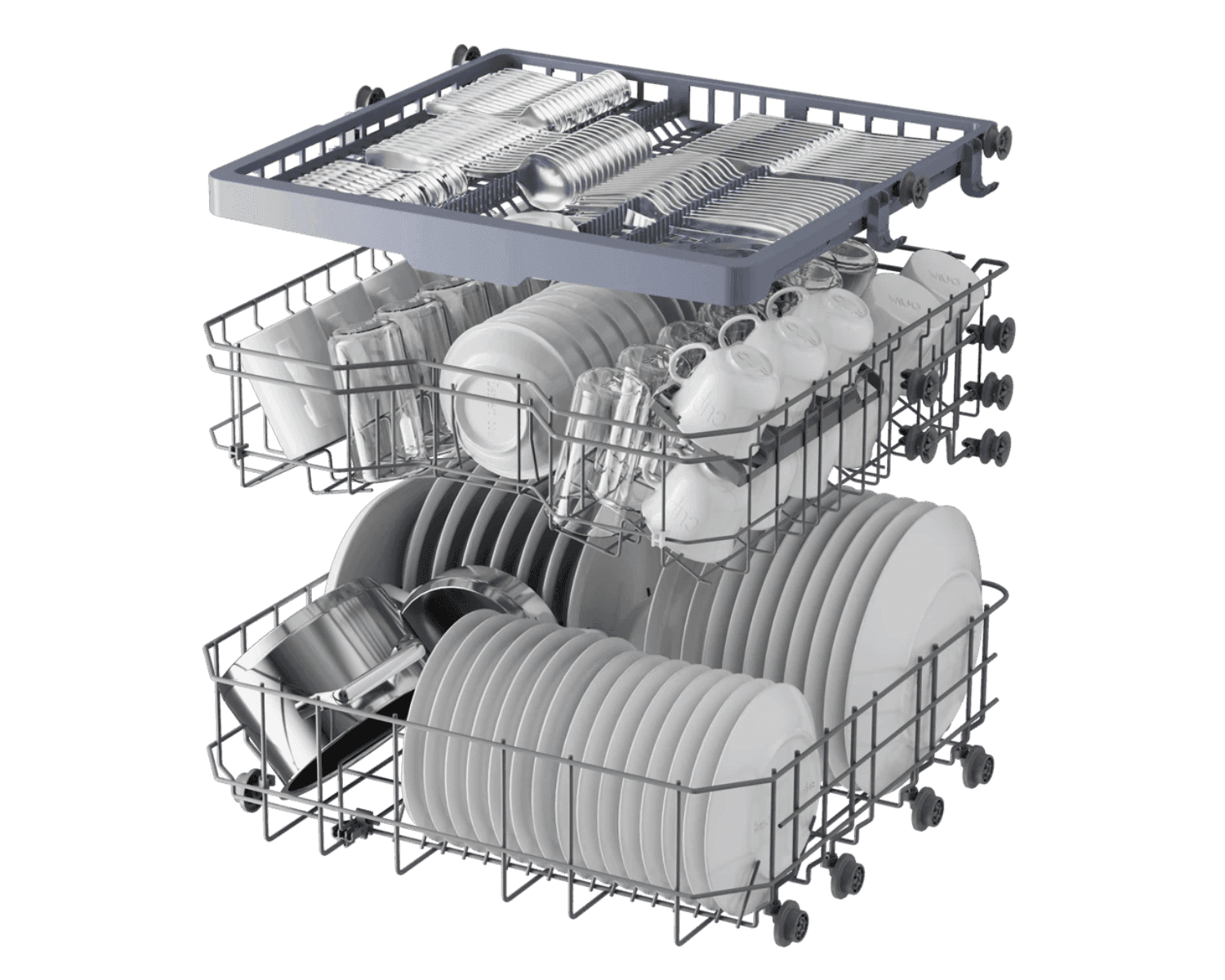

DW12B1-01
Semi-Integrated 60cm dishwasher with stainless steel cavity & fireproof metal base. Features Turbo Dry, water softener, 3rd cutlery tray, adjustable baskets for 15 place settings. Multiple wash programs, child lock, half-load function, low 46dB noise.

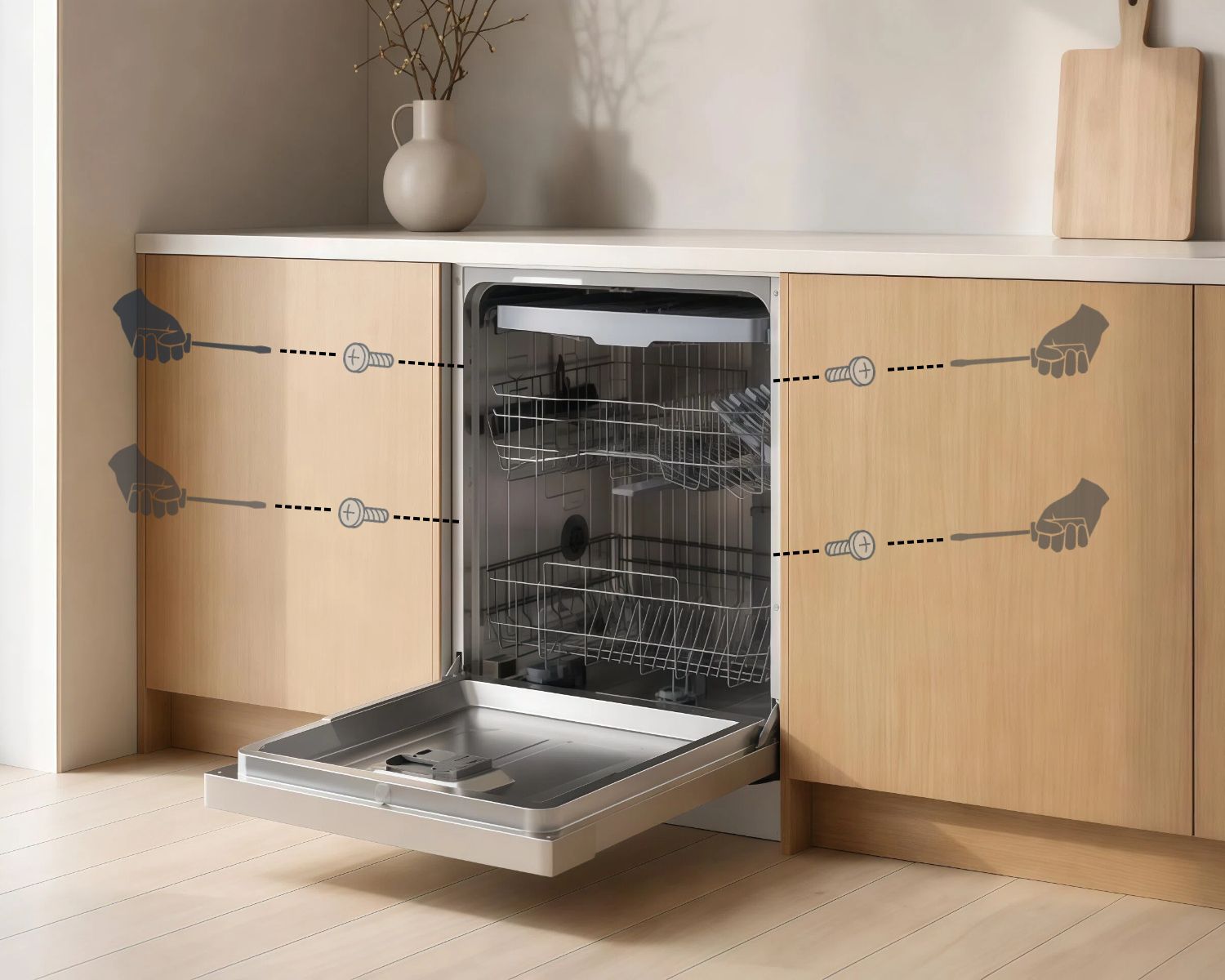

4-Point Simple Installation
4-point mounting design, no screws fixed to the countertop. Protects your stone worktop from drilling damage.

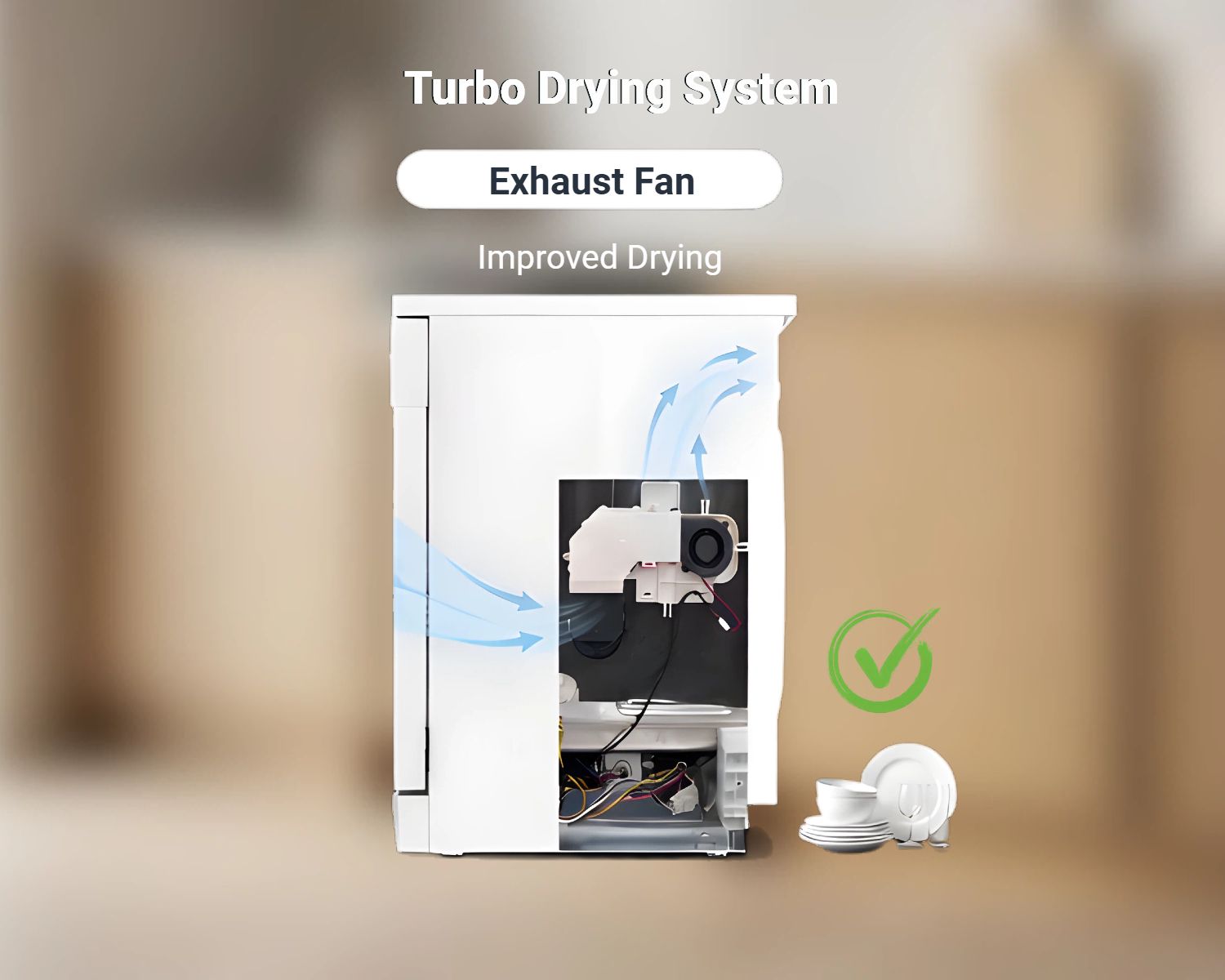

Turbo Dry Technology
The turbo fan actively exhausts humid air and introduces fresh dry airflow within the dishwasher cavity, delivering comprehensive drying results for every task.

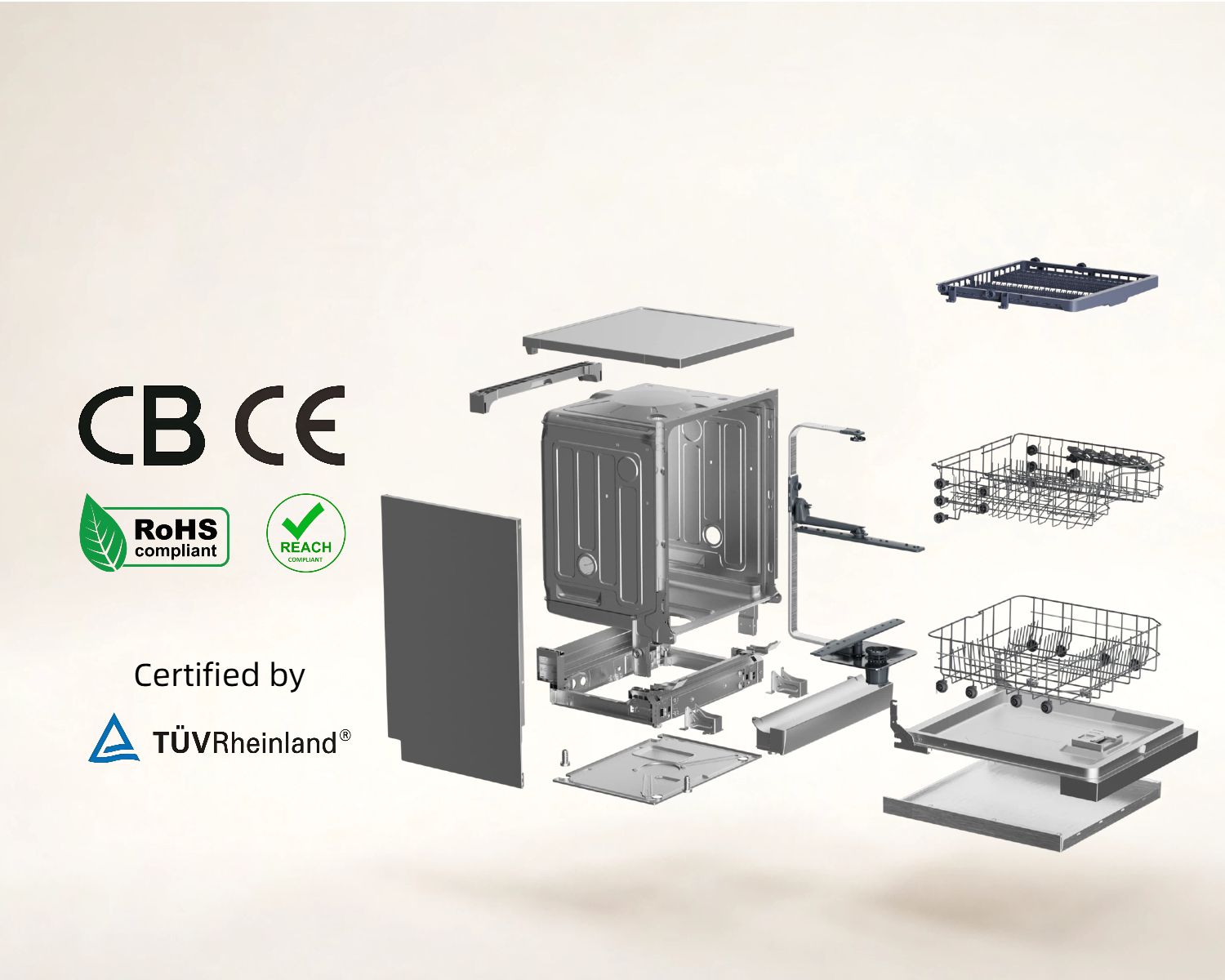

Extra metal structure
We 'd like to use more metal element than others. Full stainless‑steel cavity for long‑term corrosion resistance. Reinforced metal fire‑proof base for enhanced safety performance. CB/CE/RoSH/Reach certified by German Labortory TÜV Rheinland.

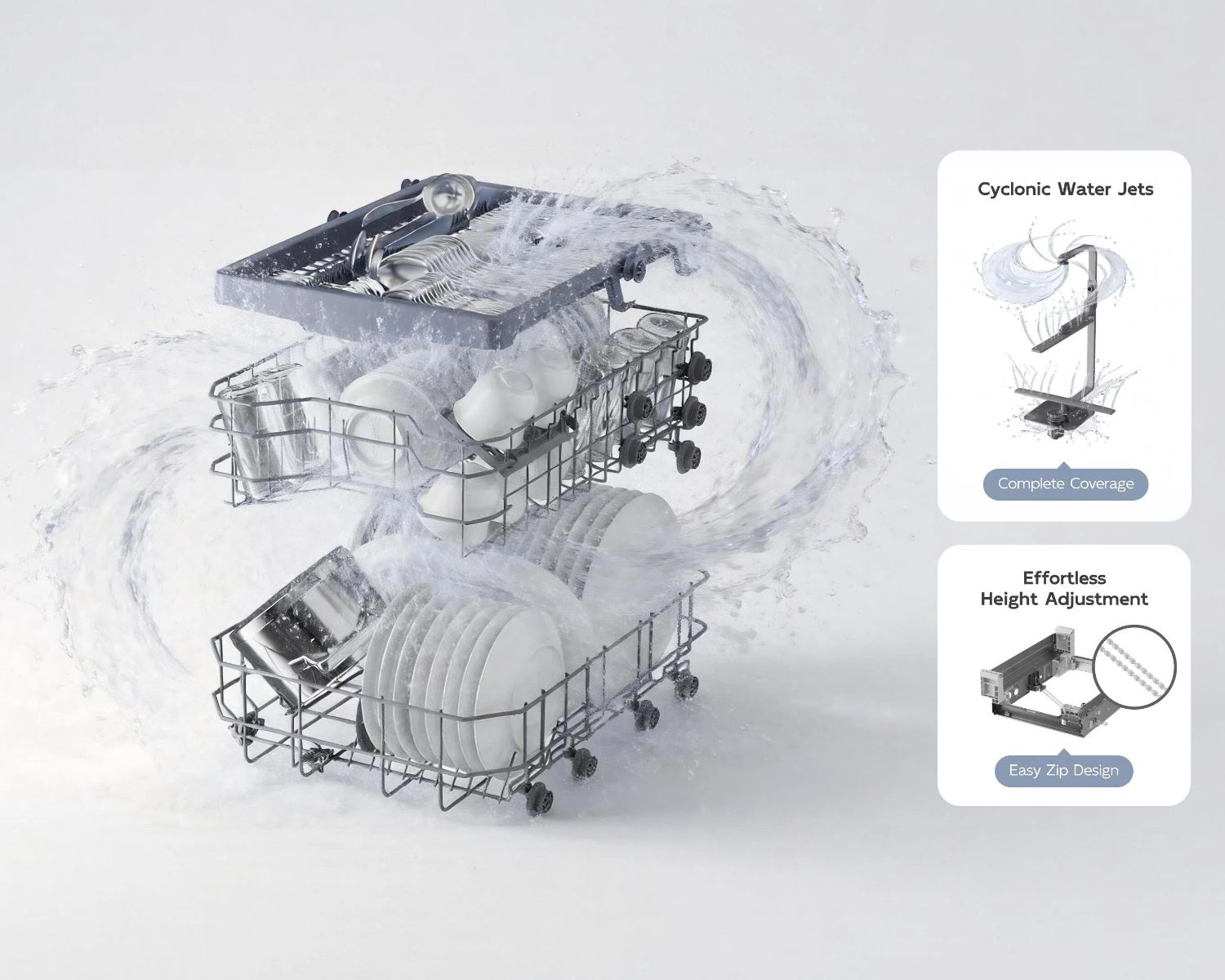

Wave Wash & Easy Zip levelling
Compact top nozzle maximizes usable space for the 3rd‑rack loading. Powered by innovative impeller design, it delivers wide‑range wave‑shaped water spray with compromising cleaning performance.
The numbers behind the design.
Aesthetic
- Color
- -
- Control
- Button control
- Display
- Digital Display& LED light
Energy label
- Energy
- D class
- Place setting
- 15 ps
- Noise level
- 46db
Program & Function
- Program
- Intensive, ECO Glass, Rapid
- Function
- Half load, Child lock, delay start, Extra dry, Strong wash
Sells point
- Water softener
- Yes
- Drying Method
- Turbo dry
- Base material
- Metal, Fireproof
- Cavity material
- Inox
Basket Structure
- Cutlery tray
- 3rd tray
- Upper basket
- Unloaded Adjustable, with Glass holder
- Lower basket
- With Pot Rack

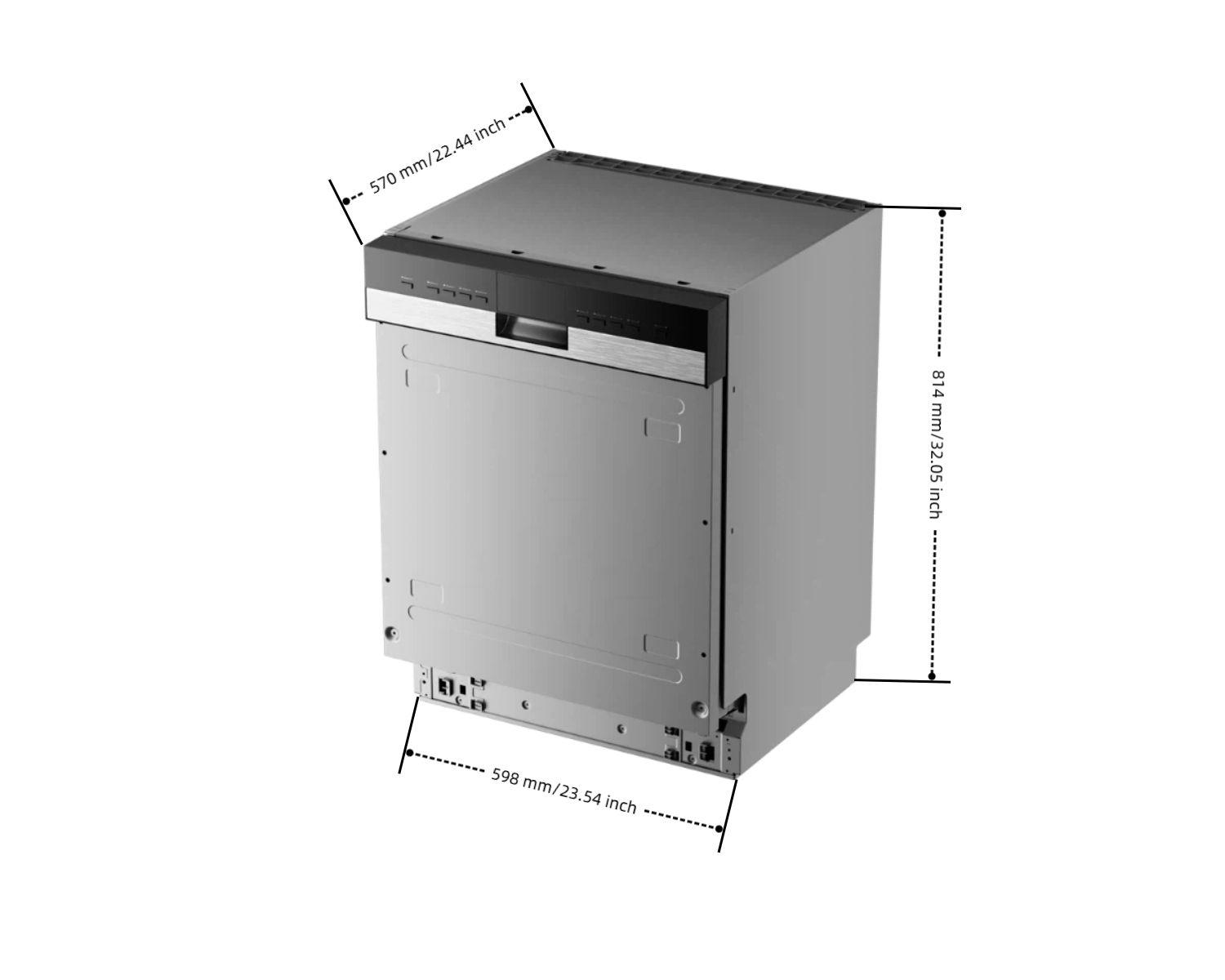

Dimension & Loading
- Product (mm)
- 598(w)*570(d)*814(h)mm
- Package (mm)
- 162 units/40HQ
- Loading qty (20GP/40GP/40HQ)
- 54/108/162 units
